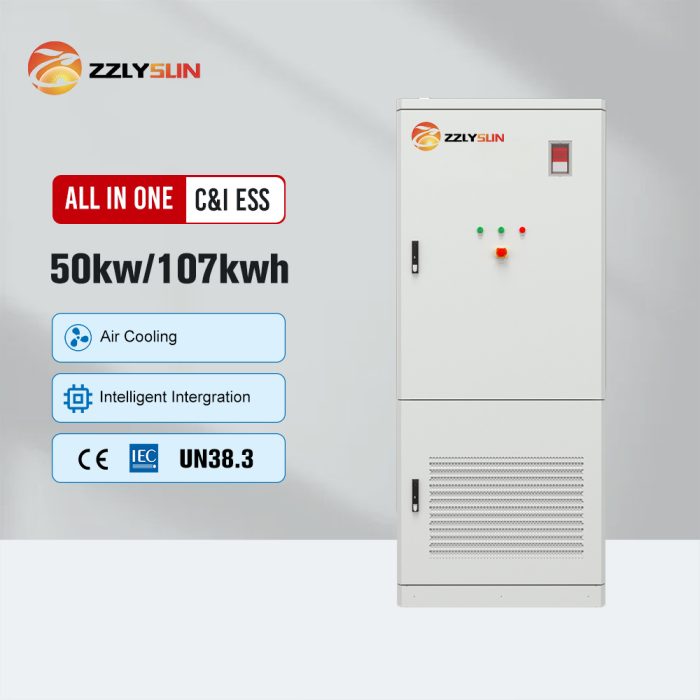

50kw/107kwh Battery Cabinet
Product Type: Lithium Battery Cabinet
Cell Type: 3.2V 280AH,1P120S
System Capacity: 384V 280AH ,107kwh Rated Power:50kw.

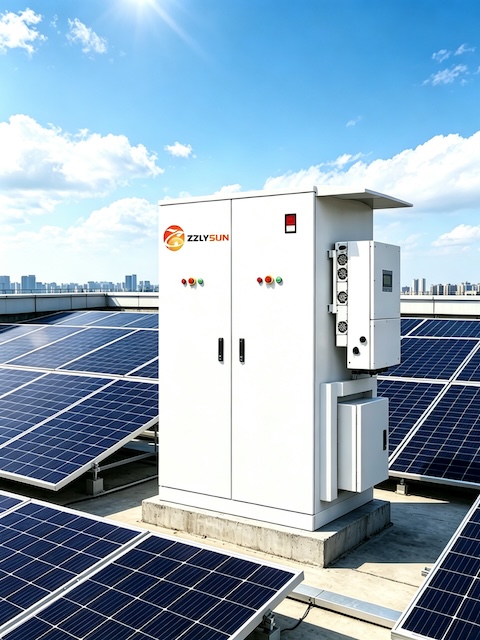

50kw/107kwh energy storage cannot
50kw/107kwh all in one storage cabinet is not only meet the industrial and commercial electricity usage,but also can meet the diversified needs of clients and provide assistance for comprehensive energy services.
ZZLYSUN can provide full range of capacities energy storage cabinet for the clients requirement,Minimize on-site configuration as much as possible, enhance the integration of the system, and customers can access and operate the system by the mobile App.
50kw/107kwh battery storage system applicable scene

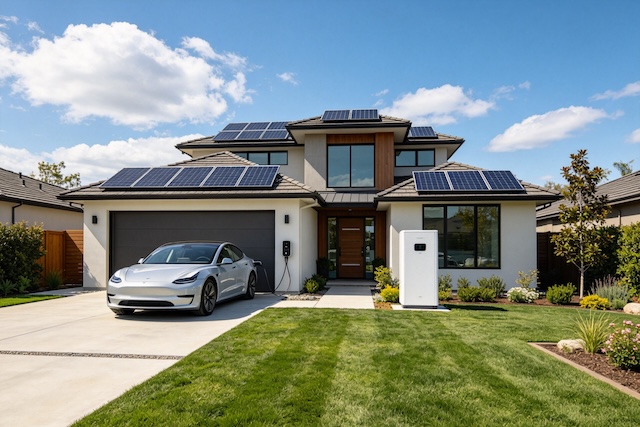

Home storage system
It is not only provide the electricity for the mass home load, but also good for the new energy car charing.

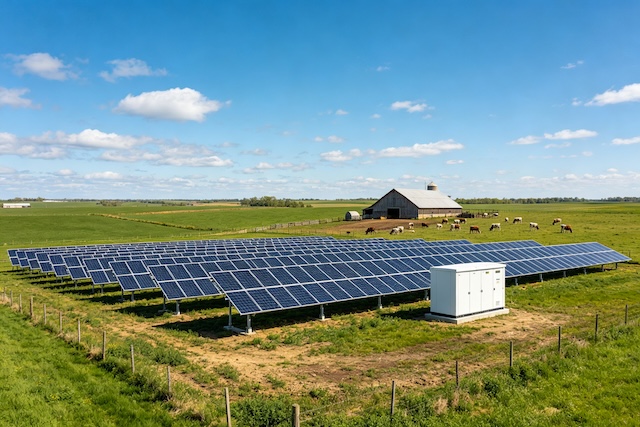

Farm Solar
Farm load is not only reply one the solar pv array, but also the battery discharge electricity can meet the night lighting system.

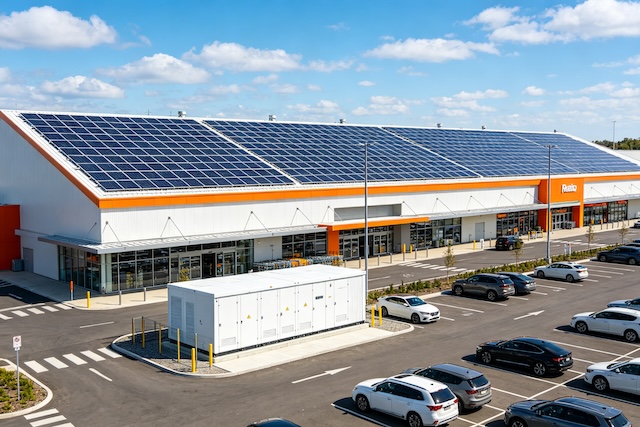

Supermarket Solar
It can meet the electricity load demand of the supermarket and connected to a charging station by the AC Side.

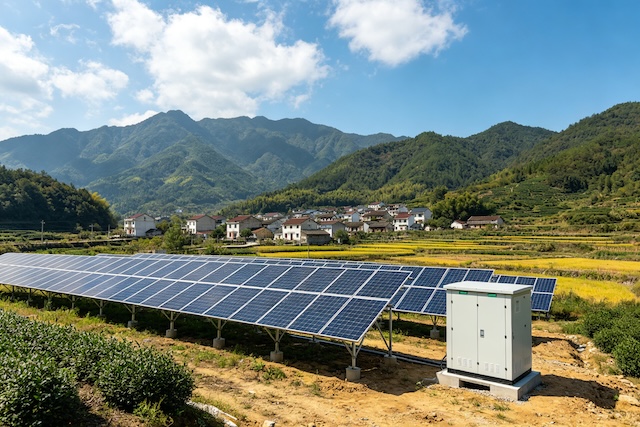

Rural Electricity
The energy storage system can meet the increasing lo a d demand in rural areas, and at the same time, the price difference can increase the local economic income.
50kw/107kwh storage battery cabinet specification
Project | Item | Parameter |
Battery Parameters | Cell Type | 3.2V/280Ah,LifePo4/LFP |
Rated Voltage | 384V | |
Voltage Range | 324~432V | |
Rated Power | 50kw | |
System Capacity | 107kwh | |
Composition | 1P120s | |
Rated Frequency | 50hz | |
Charge-discharge Rate | 0.5C | |
System Parameters | AC Voltage Rating | 400VAC |
AC Wiring | 3P+N+PE | |
Heat Dissipation Method | Air Cooling | |
Converter cooling method | Forced Air Cooling | |
Protection Level | IP20 | |
System Communication Mode | CAN,RS485,Ethernet,4G | |
Cycle Life | ≥ 6000 TIMES | |
Product Dimensions | 1000X1400X2415 m m | |
Product Weight | ≈1.3T | |
Environmental Conditions | Installation Method | Indoor/Outdoor Installation(must be covered by canopies) |
Ambient Temperature | -20℃～55℃ | |
Humidity Range | 0~95% (Non-condensing) | |
Altitude | 4000 M (> 2000M Need to be reduced) |
50kw/107kwh Performance Characteristics
The advantages of energy storage cabinet
Modular Design
The product adopts the modular design with PV Input,Battery Pack,Power conversation,AC output, fire protection, etc.
Intelligent Matching
The product is communication with various types of batteries, can realize different charing and discharging strategies.
Distributed Demand
The user can regulated the charing and discharging logic according to the power consumption policy in different periods of time in the region.
On/off grid switching
It can realize seamless switching between grid and off grid connection, and avoid economic losses caused by power failure.
