What is included in the 125kw/241kwh Storage Battery Cabinet?

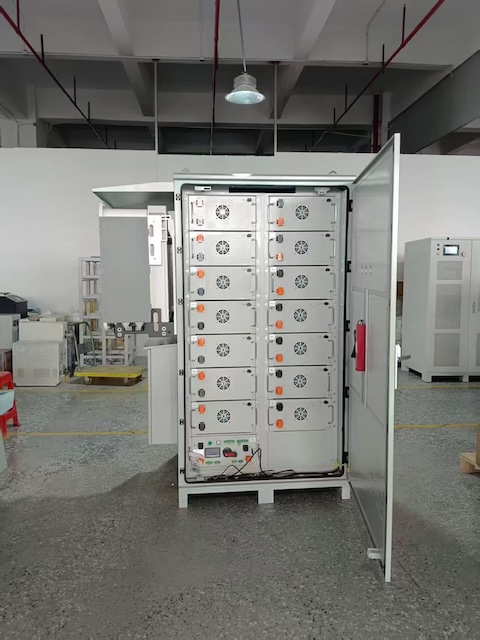

The125kw/241kwh energy storage cabinet is a product developed for industrial and commercial energy storage application。241KWH all in one storage cabinet is composed with Photovoltaic input unit,battery pack unit,power conversation unit and fire protection unit.

JMSUN power supply is safe and stable,maximizing the utilization rate of new energy resource,seamless off grid switching,uninterrupted supply of load,build-in isolation transformer,strong load and adaptability.

125kw/241kwh Storage Battery Cabinet Multi-scene Application

125kw/241kwh Storage battery cabinet is developed in multiple scene applications, such as the large-scale electricity production requirement, village area with unstable power supply,hospital 24-hours emergency equipment for off grid and EV charging power station.

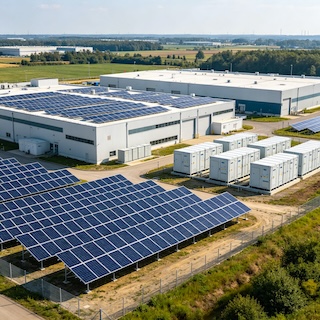

Industrial Park

The battery cabinet can be used to meet the large-scale electricity production demands of factories.

Village Area

It can be used in remote rural areas where the power supply is unstable.

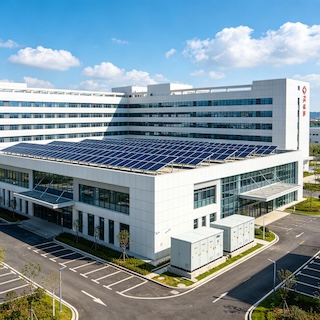

Hospital

When grid emergency power outage, it can be used as a 24-hour backup power supply for emergency medical equipment in hospitals.

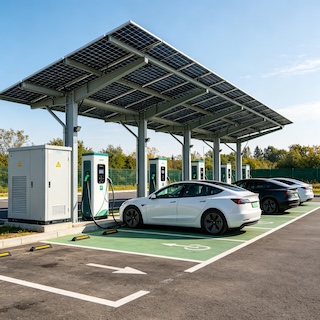

EV Charging

It can be used for peak-valley arbitrage of the electricity price difference at charging stations.

125kw/261kwh Storage Cabinet Specification

Project	Item	Parameter
Battery Parameters	Cell Type	3.2V/280Ah,LifePo4/LFP
	Rated Voltage	768V
	Voltage Range	650~949V
	Rated Power	125kw
	System Capacity	241kwh
	Composition	1p240s
	Rated Frequency	50hz
	Charge-discharge Rate	0.5C
System Parameters	AC Voltage Rating	400VAC
	AC Wiring	3P+N+PE
	Heat Dissipation Method	Intelligent Liquid Cooling
	Converter cooling method	Forced Air Cooling
	Fire Protection Scheme	Composite detectors(Smoke,Temperature,Flammable gases);sound and light alarms;package spraying,cluster spraying;perfluorohexanone extinguishing agent;water firefighting.
	Protection Level	IP54
	System Communication Mode	CAN,RS485,Ethernet,4G
	Cycle Life	≥ 6000 TIMES
	Product Dimensions	1000X1400X2415 m m
	Product Weight	≈2.7T
Environmental Conditions	Installation Method	Indoor/Outdoor Installation(tent shelter recommended)
	Ambient Temperature	-20℃～55℃
	Humidity Range	0~95% (Non-condensing)
	Altitude	3000 M (> 3000M Need to be reduced)

The advantages of storage cabinet

Why choose the storage cabinet?

MPPT Function

PV MPPT output automatic tracking function to improve the pv power generation of the system.

Flexible Operation

ON/off-grid operation strategy is flexible,suitable for a variety of applications.

Integrated interface

Integrated load and oil engine interface to facilitate system construction.

Static switch

Based on static switching technology to ensure the continuous power supply capacity of important loads.

Intelligent BMS

Build in automatic power dispatching management base on EMS to realized unattended operation.

Parallel Function

Support the parallel function of multiple machines to facilitate capacity expansion.

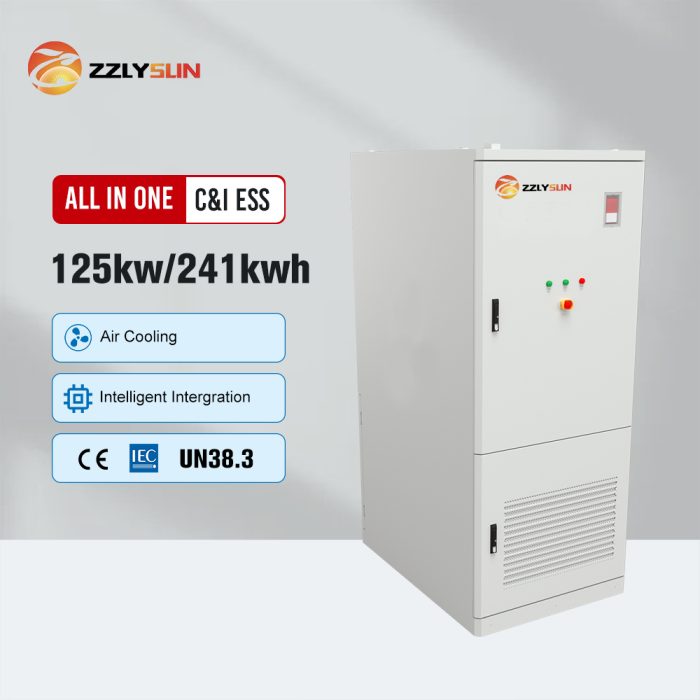

125kw/241kwh Battery Cabient
