125kw/215kwh Energy Storage Cabinet Intelligent BMS

All in one storage cabinet 125kw/215kwh energy storage cabinet is adapt traditional power quality management and energy storage EMS function combination of technology innovation,implements the charge and discharge,peak cutting,valley filling,consumption,voltage support,voltage reduction,battery protection and other EMS functions.

ZZLYSUN storage battery BMS has a perfect protection function and the protection of the inverter and battery.

125kw/251kwh energy storage cabinet full range scene

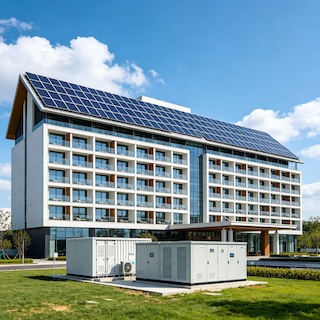

Hotel Electricity

It can alleviate the electricity demand during the peak hours in the evening and reduce the operating expenses of the hotel.

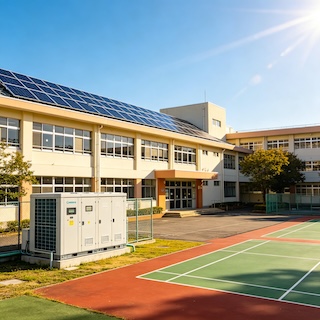

School

The excess electricity during the day can be stored in the battery cabinet and the price difference between peak and off-peak periods can be exploited to make a profit.

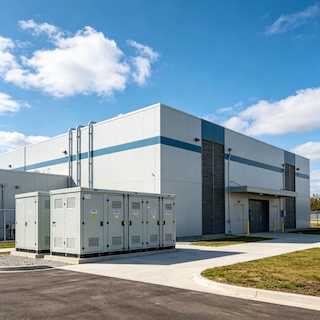

Data Senter

The energy storage system can ensure the 24-hour operation of the data center and reduce the loss of data resources in case of power outage.

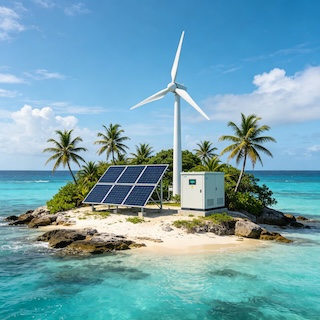

Remote Island

The abundant sunlight resources at sea can store the excess electricity in batteries, thus meeting the electricity demand at night when there is no grid power supply.

The 125kw/215kwh energy storage cabinet Specification

Project	Item	Parameter
Battery Parameters	Cell Type	3.2V/280Ah,LifePo4/LFP
	Rated Voltage	768V
	Voltage Range	650~949V
	Rated Power	125kw
	System Capacity	241kwh
	Composition	1p240s
	Rated Frequency	50hz
	Charge-discharge Rate	0.5C
System Parameters	AC Voltage Rating	400VAC
	AC Wiring	3P+N+PE
	Heat Dissipation Method	Intelligent Liquid Cooling
	Converter cooling method	Forced Air Cooling
	Fire Protection Scheme	Composite detectors(Smoke,Temperature,Flammable gases);sound and light alarms;package spraying,cluster spraying;perfluorohexanone extinguishing agent;water firefighting.
	Protection Level	IP54
	System Communication Mode	CAN,RS485,Ethernet,4G
	Cycle Life	≥ 6000 TIMES
	Product Dimensions	1000X1400X2415 m m
	Product Weight	≈2.7T
Environmental Conditions	Installation Method	Indoor/Outdoor Installation(tent shelter recommended)
	Ambient Temperature	-20℃～55℃
	Humidity Range	0~95% (Non-condensing)
	Altitude	3000 M (> 3000M Need to be reduced)

Energy Storage Cabinet Feathers

How to choose the energy storage cabinet?

Reduce power loss

Intelligent multi-stage AC Fan speed regulation technology to reduce the system loss.

BMS Protection

The perfect protection measure with ability to actively monitor faults and protection.

Cloud Sever

Support remote cloud intelligent integrated operation and maintenance management system.

Wide voltage

Wide Voltage range of DC side, suitable for a variety of batteries.

Conversation Function

High/low voltage conversation function.

Parallel Function

For the facilitate capacity expansion requirement, we support multiple cabinet parallel function.

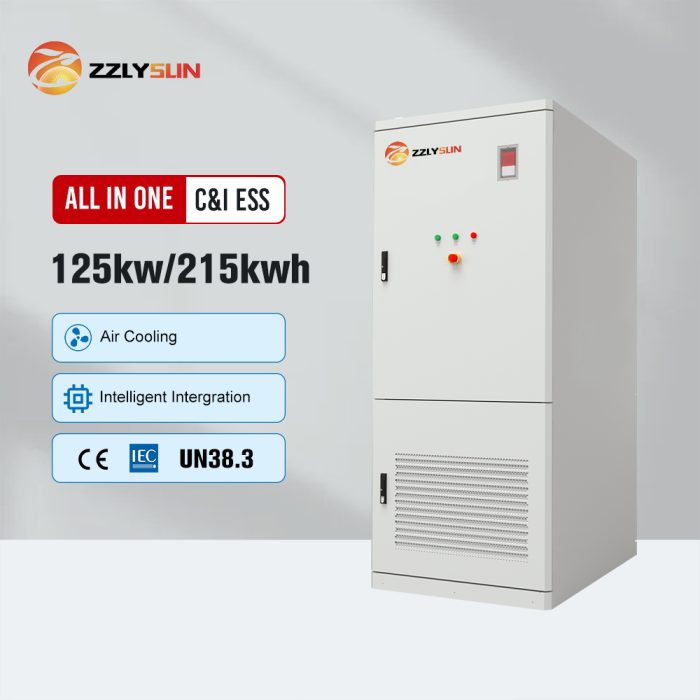

125kw/215kwh Battery Cabinet
